Airspace Classifications

Refer to the B4UFLY app of the intended operating area to aid in your decision making regarding sUAS operations in National Airspace Systems.

Class B

Class C

Class D

Class E

Class G

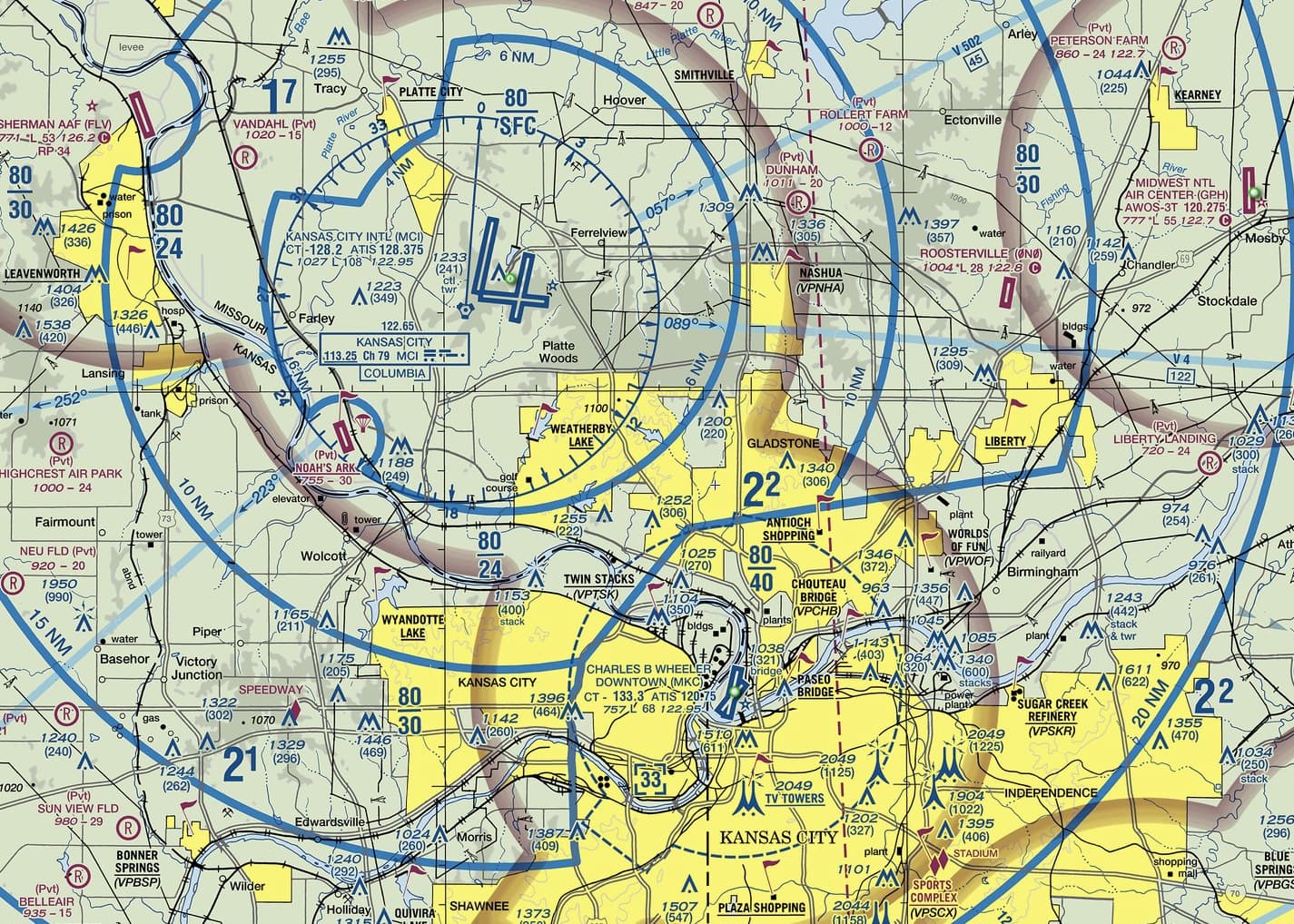

Class B airspace

Most Class B airports are found in large, busy metropolitan areas with significant air traffic. They are major commercial airports that serve as major hubs for airline operations and passenger travel.

Controlled Airspace

Extends upward from surface (sometimes higher up to specified altitudes)

Floor & Cieling

Denoted by one number over a second number or the letters SFC (i.e. 10/300 or 10 / SFC)

ATC Clearance

Required

Sectional Chart Label

Blue Outline – Solid

Comms Requirements

  • Must have a two-way radio communication capability
  • Must have a transponder equipped with Mode C altitude reporting (allows ATC to monitor your positions and altitudes accurately.(

Towered?

Yes

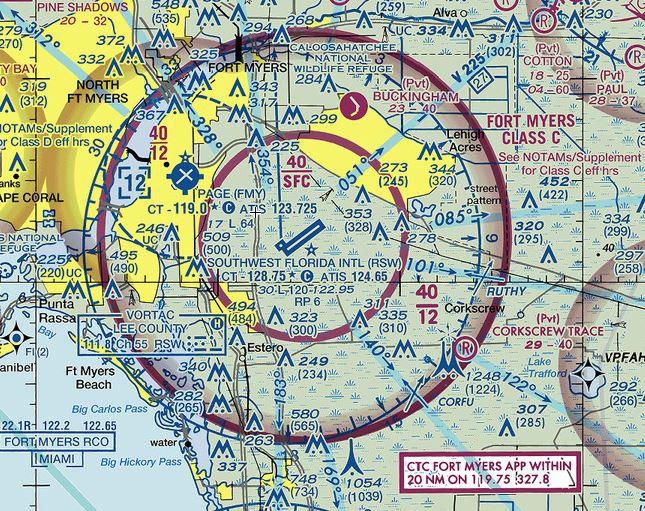

Class C airspace

Most Class C airports are found in mid-sized cities with moderate air traffic levels. They are typically regional airports that serve a mix of commercial, private, and general aviation aircraft and have a control tower to manage air traffic within their airspace.

Controlled Airspace

Inner surface area: Radius of 5 NM and extends from surface up to 4,000 feet above the airport (AGL).

Outer surface area: Radius of 10 NM and extends vertically from 1,200 feet AGL up to 4,000 feet above airport.



Floor & Cieling

Denoted by one number over a second number or the letters SFC (i.e. 10/300 or 10 / SFC)

ATC Clearance

Required

Sectional Chart Label

Magenta Outline – Solid

Comms Requirements

  • Two-way radio – Required
  • Transponder equipped with Mode C altitude reporting – Required
  • Altimeter – Required

Towered?

Yes
